Posture detector

Post by: Tobias Larsson
27th October 2023
No Comment

Measuring instument for detecting bad bend of the back on construction worksites

Programme: Mechanical Engineering

Course: MT2569 – Design Thinking

Corporate partner: Volvo Construction Equipment

Challenge: Identify problem regarding safety at construction worksites, with the focus point on datacollection.

Solution: Bending your back in an incoorect way and lift heavy tools or material could lead to serious back problems which slows down the effectiveness on the worksite. A small back bending sensor was developed to count how many times a worker bend their back during a day, it is also included a light in a pair of safety glasses to remind and warn the worker about they bend their back incorrectly. To get datta on how common it is to bend your back incorrectly at a worksite the company could use this reading to know if they need to educate further regarding posture and correct lifting technicies.

Impact: A better posture gives less sick workdays at a construnction worksites and improves effectiveness.

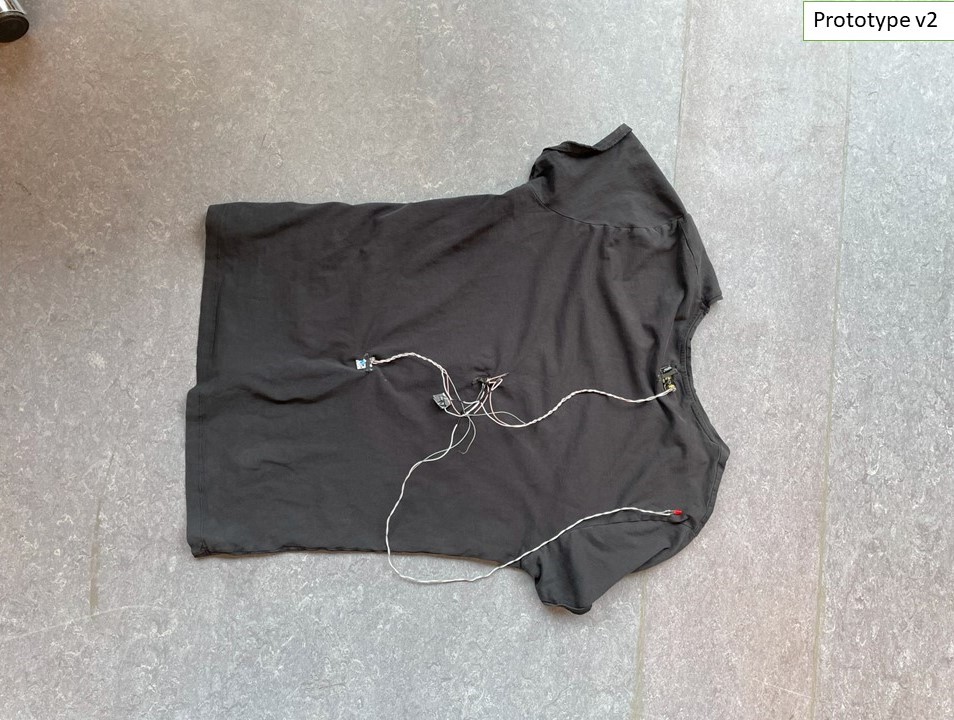

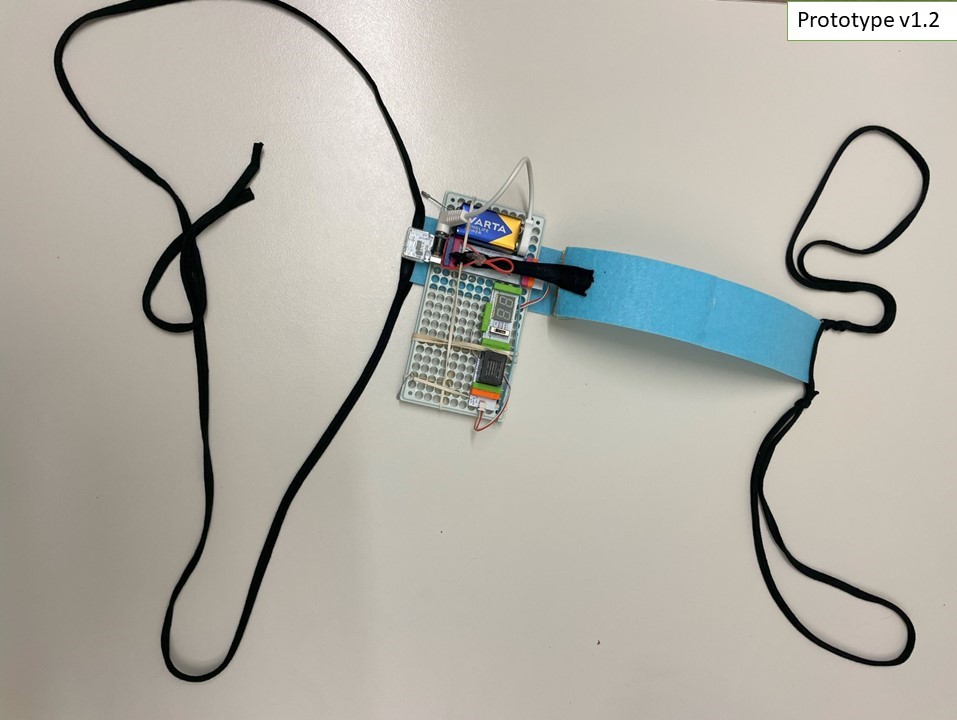

Prototypes: With an arduino and a tilt sensor we built a sensor that detects when you bend your back and for every bend we get a reading on it. We also added a light to a pair of safety glasses to warn the worker about the dangerous back bend. The sensor where mounted to an reflective vest, but could be mounted on other pieces of clothing.

Quotes from sponsor/partner: –

Project team:
